Overview
| Place of Origin: | Guangzhou, China |
| Brand Name: | ECAIPOWER |
| Model Number: | ME80AT0CY80A-B |
| Certification: | CE |
| Minimum Order Quantity: | 10 |
| Packaging Details: | Standard Exporting Packing. OEM brand can be printed/pasted. |
| Delivery Time: | 15-40 days, depend on specific model and quantity |
| Payment Terms: | *For order less than US$ 10K, full payment before production. *30% T/T Payment before production, 70% T/T Payment before shipment. |

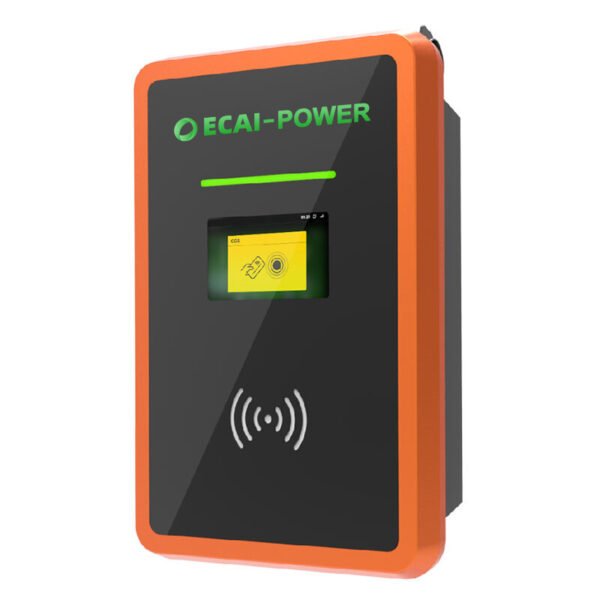

Description
Fashionable and Convenient: The appearance design is fashionable and simple;
High compatibility: Standard J1772 connector is adopted, which can be widely compatible with electric vehicles or plug-in hybrid vehicles with American standard AC charging interface;
LCD screen: 5”LCD screen with light display provides users with a better operating experience.
Applications
Applicable to all trams.
Specifications
Rated power | 19.2kW |
Input Wiring | Single-phase L+N+PE |
Rated Voltage | 240VAC |
Rated Current | 80A |
AC Frequency | 60Hz |
Operating Temperature | ‘-30℃～＋50℃ |
Operating Humidity | 5%-95% without condensation |
Altitude during operation | ≤ 2000M |
Internal Cooling Method | Natural cooling |
Display | 5-inch LCD touch screen |
LED Indicators | Tri-colour LEDs |
Access Modes | RFID Card, QR code scanning via APP, Credit Card(optional) |
Network Interface | 3G/4G/Ethernet |
Communication Protocol | OCPP 1.6-J ,OCPP 2.0.1 (Can Be Upgraded Later) |
Installation Method | Floor-standing or Wall mounted |
Dimensions (W x D x H) | 268mm×157mm×410mm |
Weight (kg) | 12KG（Machine body）+6KG(Column) |
Connector Cable Length | The standard is 5m, and 5-10m(optional) |
Degree of protection | IP55 |
Mechanical Impact | IK10(IK08 Screen) |
Pollution degree (PD) | PD3 |
Noise (lab environment) | ≤50dB |
Grounding Protection | YES |
Protection function | Overvoltage, Undervoltage, Short circuit, Overcurrent, |
Standards | NEC Article 625 and UL 916, UL 2594, |
Certifications | CE |
Warranty | 24Months with Warranty Extensions Available |
