Overview
| Place of Origin: | Guangzhou, China |
| Brand Name: | ECAIPOWER |
| Model Number: | JU040CCZ040 |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Standard Exporting Packing. OEM brand can be printed/pasted. |
| Delivery Time: | 15-40 days,depend on specific model and quantity |
| Payment Terms: | *For order less than US$ 10K, full payment before production. *30% T/T Payment before production, 70% T/T Payment before shipment. |
Product Details
Description
Top brand components selection
Smart energy management to reduce the operation cost
Environment friendly with low noise
Flexible configuration of different rating outlets and smart charging control
2 years warranty for passive components
One stop solution for EV charging and storage
User friendly HMI
Value added service
Applications
Suitable for all types of electric vehicles in the market, including electric vehicles, electric trucks, electric buses, electric yachts, electric forklifts, etc.
Specifications
Rated power | 40kW |
Input Wiring | Three-phase,3P+N+PE,TT,TN-S |
AC Input Rated Voltage | 400V ± 10% |
AC Maximum Input Current | 63A |
AC Frequency | 50Hz |
Operating Temperature | ‘-30℃～＋50℃(power reduces above 50℃) |
Operating Humidity | 5%-95% without condensation |
Altitude during operation | ≤ 2000M |
Internal Cooling Method | Forced air-cooling |
Efficiency | ≥ 95% (above half load) |
Harmonics | iTHD ≤ 5% (above half load) |
Power factor | ≥0.99 |
Voltage Accuracy | ≤ ± 0.5% |
Current Accuracy | ≤ ± 1% |
Vehicle Connectors | 2 x CCS 2 |
DC Output Voltage Range | 200-1000V |
Constant power interval voltage | 300-1000V |
DC Output Current Range | 0~133.3A |
Display | 15-inch LCD touch screen |
LED Indicators | Tri-colour LEDs |
Emergency Stop Button | Included |
Access Modes | RFID Card, QR code scanning via APP, Credit Card(optional) |
Network Interface | 3G/4G/Ethernet |
Communication Protocol | OCPP 1.6-J ,OCPP 2.0.1 (Can Be Upgraded Later) |
Remote Upgrade | YES |

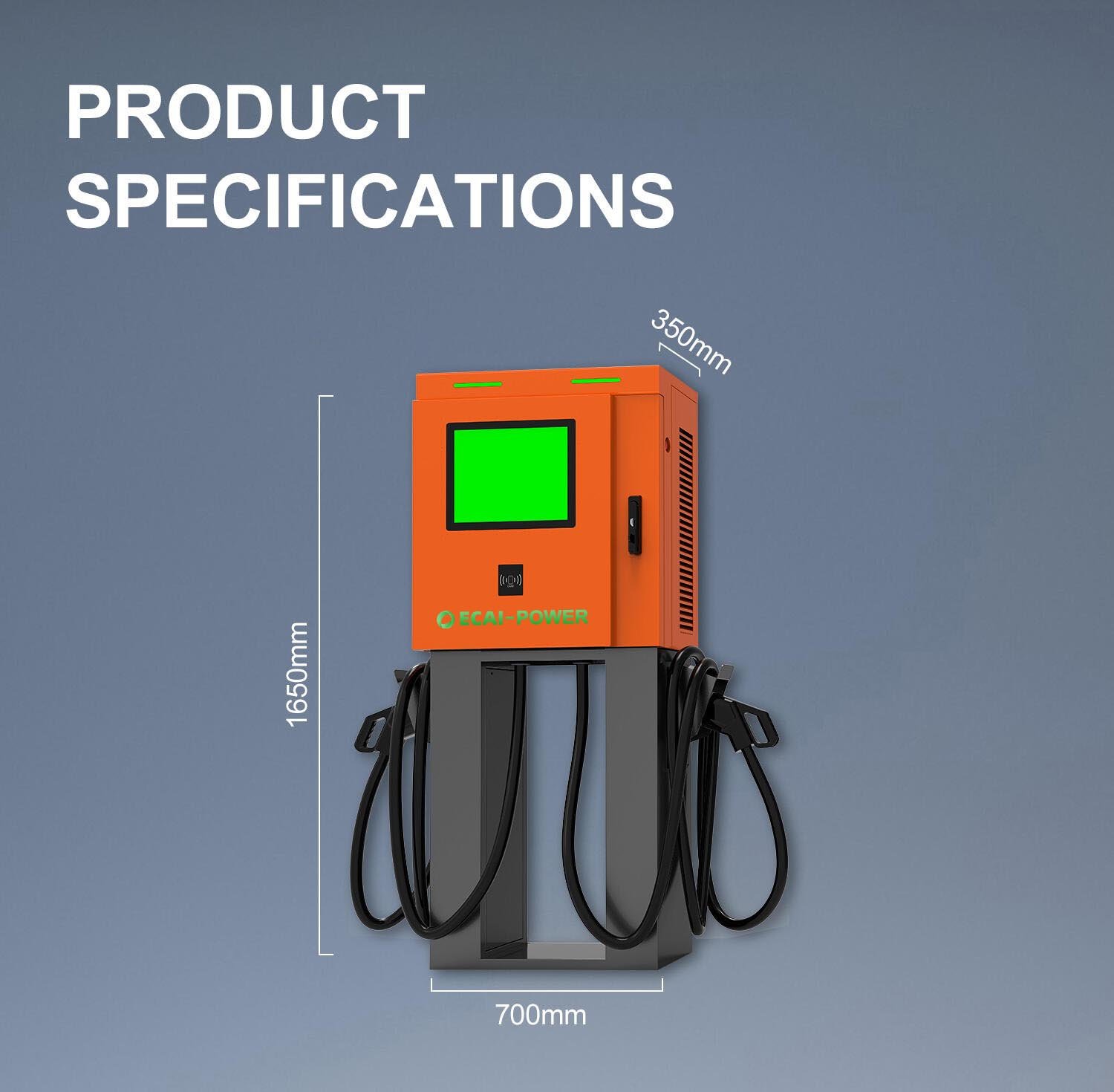

Dimensions (W x D x H) | 700mm×350mm×1650mm |
Weight (kg) | 230kG |
Connector Cable Length | The standard is 5m, and 5-10m(optional) |
Degree of protection | IP55 |
Mechanical Impact | IK10 |
Pollution degree (PD) | PD3 |
Noise (lab environment) | ≤65dB |
Protection function | Overvoltage, Undervoltage, Short circuit, Overcurrent, |
Standards | EN 61851-1:2019; EN IEC 61851-21-2:2021; EN 61851-23:2014; EN 61851-24:2014; DIN 70121 / ISO 15118; |
Certifications | CE |
Warranty | 24Months with Warranty Extensions Available |
