Overview
| Place of Origin: | Guangzhou, China |
| Brand Name: | ECAIPOWER |
| Model Number: | JU36006P/JU48008P+JU200C0F/JU200CCF/JU400C0F/JU400CCF/JU500C0SF |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Standard Exporting Packing. OEM brand can be printed/pasted. |
| Delivery Time: | 15-40 days, depend on specific model and quantity |
| Payment Terms: | *For order less than US$ 10K, full payment before production. *30% T/T Payment before production, 70% T/T Payment before shipment. |
Description
• Top brand components selection
• Smart energy management to reduce the operation cost
• Environment friendly with low noise
• Flexible configuration of different rating outlets and
• smart charging control
• 2 years warranty for passive components
• One stop solution for EV charging
• User friendly HMI
• Value added service
Applications
Suitable for all types of electric vehicles in the market, including electric vehicles, electric trucks..etc
Specifications
| Rated power | 360kW/480kW |
| Input Wiring | Three-phase, 3P+N+PE, TT, TN-S |
| AC Input Rated Voltage | 400V ± 10% |
| AC Maximum Input Current | 867A |
| AC Frequency | 50Hz |
| Operating Temperature | ‘-30℃～＋50℃(power reduces above 50℃) |
| Operating Humidity | 5%-95% without condensation |
| Altitude during operation | ≤ 2000M |
| Internal Cooling Method | Forced air-cooling |
| Efficiency | ≥ 95% (above half load) |
| Harmonics | iTHD ≤ 5% (above half load) |
| Power factor | ≥0.99 |
| Voltage Accuracy | ≤ ± 0.5% |
| Current Accuracy | ≤ ± 1% |
| Vehicle Connectors | 10 x CCS2 |
| DC Output Voltage Range | 200-1000V |
| Constant power interval voltage | 300-1000V |
| MAX DC Output Current | 200A/400A(Air-cooled terminal)500A(Liquid cooling terminal) |
| Display | 7-inch LCD touch screen |
| LED Indicators | Tri-colour LEDs |
| Emergency Stop Button | Included |
| Access Modes | RFID Card, QR code scanning via APP, Credit Card(optional) |
| Network Interface | 3G/4G/Ethernet |
| Communication Protocol | OCPP 1.6-J, OCPP 2.0.1 (Can Be Upgraded Later) |
| Remote Upgrade | YES |

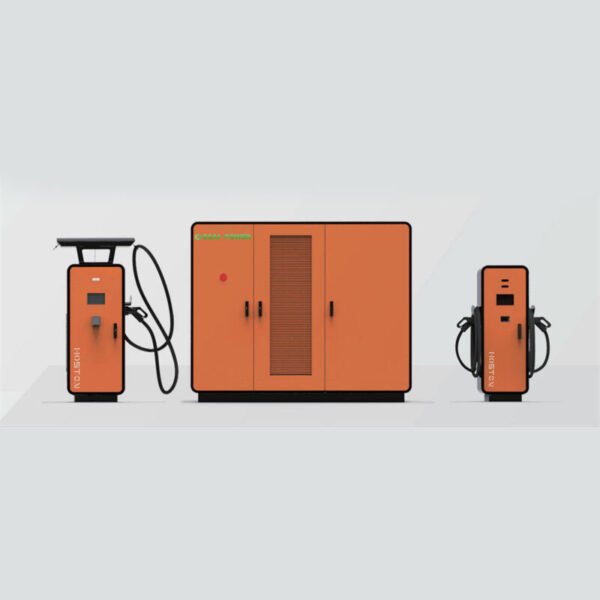

| Power cabinet Size(W x D x H) | 2250mm×850mm×1760mm |
| Charging terminal Size(W x D x H) | Fast charger(Air-cooled terminal):560mm×237mm×1518mm Fast charger(Air-cooled terminal):840mm×235mm×1800mm (Include balancer)Supercharger(Liquid cooling terminal):840mm×285mm×1800mm |
| Weight (kG) | Powercabinet:1140kGFastcharger:116kGSupercharger:130kG |
| Connector Cable Length | The standard is 5m, and 5-10m(optional) |
| Degree of protection | IP55 |
| Mechanical Impact | IK10 |
| Pollution degree (PD) | PD3 |
| Noise (lab environment) | ≤65dB |
| Protection function | Overvoltage, Undervoltage, Short circuit, Overcurrent, Overheating, Current leakage, Surge and Access control and IMD |
| Standards | EN 61851-1:2019; EN IEC 61851-21-2:2021; EN 61851-23:2014; EN 61851-24:2014; DIN 70121 / ISO 15118; |
| Certifications | CE |
| Warranty | 24Months with Warranty Extensions Available |
